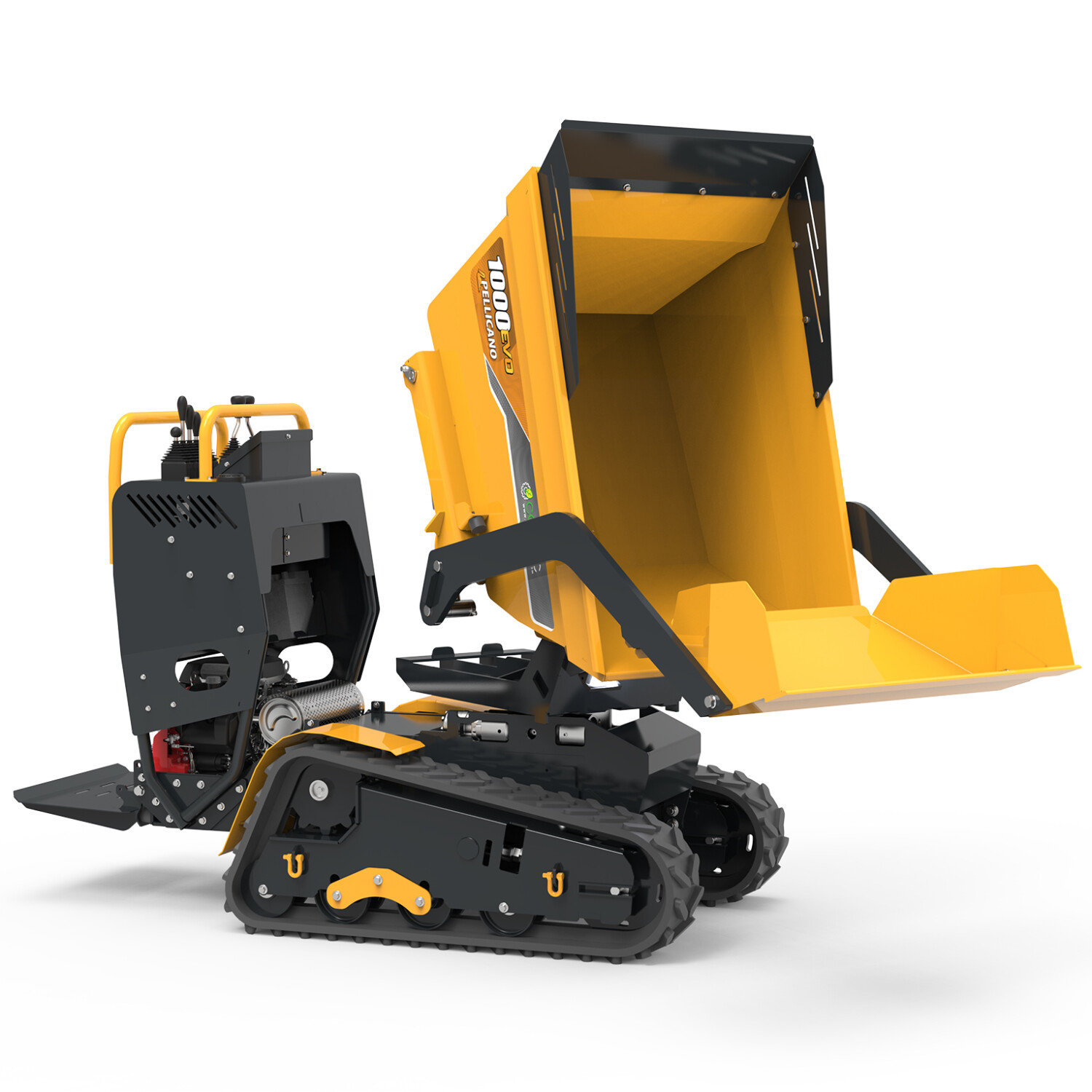

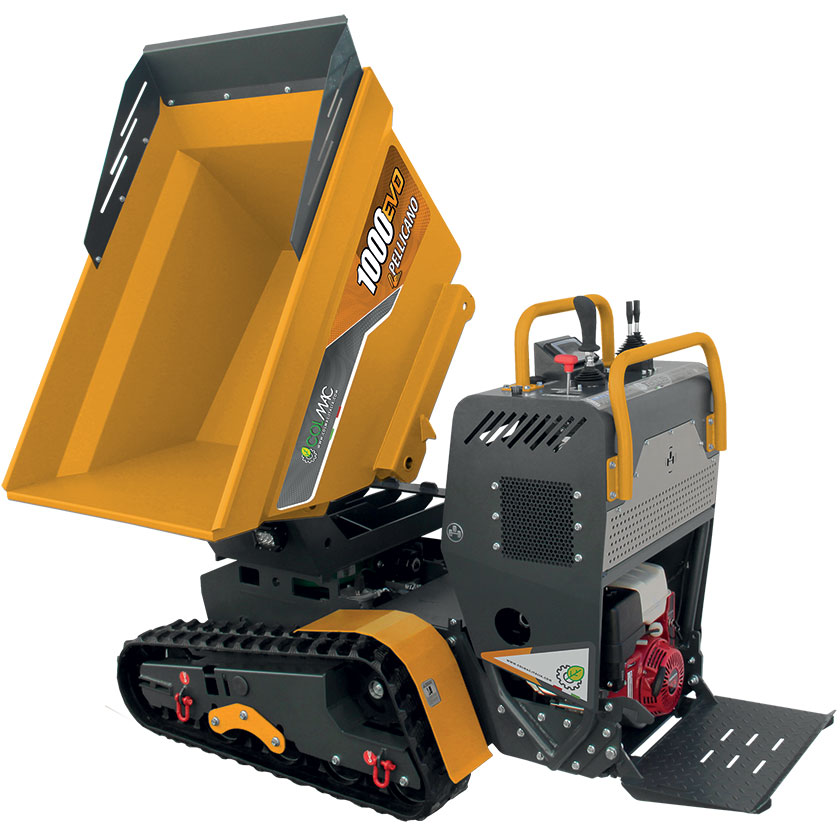

Mini Dumper Pellicano 1000 EVO SL

The range of MINIDUMPER series 1000 EVO, due to their large load capacity, meet the needs of companies that need to transport large volumes. Width 96 cm Dumper Dumper side discharge Dumper hi tip Hydraulic tipping Max payload 700 Kg 12lt Gasoline Max slope 30% 2 speed Honda GX 630 2 OVERCENTER VALVES For added safety, the machine is equipped with overcenter valves, which eliminate the possibility of increasing the speed when descending (even with heavy loads) and making it stationary when standing on slopes. HYDRAULIC SYSTEM The machine is equipped with 3 gear pumps, which guarantee the movement and use of all the services with which it is equipped. TRACKS – IDLERS 4 support rollers on each side ROLLER BALANCED SYSTEM Four rollers enabling the machine to overcome obstacles UNDERCARRIAGE Equipped with hooks for lifting LED HEADLIGHTS KIT On every version OPERATOR PLATFORM A large, comfortable, robust and non-slip operator’s platform is fitted as standard. With vibration damping system. Also foldable for space-saving storage. ENGINE HONDA The machine is equipped as standard with the electric starter system. Technical Data Sheet Engine Honda GX630 15,5 kw – 20,8 Cv – 3600 rpm/min Engine type 4 Stroke – single cylinder Fuel tank capacity 12 Lt petrol Starting system Electric Transmission Hydrostatic Advancement speed 2 speed – 2,5 km/h – 4,2 km/h Hydraulic motors 315 cc orbital 1 Hydraulic pump Trile gear Flow rate 24 12 12 Lt/min a 3000 rpm Max pressure 180 bar Working pressure 150 bar Oil tank 21 Lt System cooling Radiator Safety system Over center Inclination Max 30% (17°) When this threshold is exceeded, an acoustic signal is activated Load capacity 1000 kg flat (700 kg inclined plane) Tipping system Hydraulic Body volume 0,47 m³ Total dimensions 182 x 152 x 96 cm Net weight 690 kg 1000 EVO 760 kg 1000 SL 795 kg 1000 SA *70 kg – Kit Loading Shovel Guidance system Joystick Track dimensions 200 mm width 72 mm pitch • 39 link Track tension adjustment Tension system with springs semi-automatic Track rollers 4 (including 2 tilting) 1 Dumper 0,47 m3 2 Self-loading shovel (optional) 3 Side discharge 4 Oil cooling radiator 5 Operator platform, foldable 6 Side protections 7 Roller balanced system 8 Track tensioning springs 9 Lifting hooks 10 Mudguard MINIDUMPER PELLICANO 1000 EVO CONTROL PANEL 1 – Proportional hydraulic joystick for machine advancement 2 – LCD display with functions – engine rpm indicator – machine longitudinal inclination indicator – transversal inclination indicator of the machine – fuel level indicator – hour counter – battery voltage indicator – hydraulic oil lter clogging indicator 3 – Loading shovel 4 – Dumper tipping 5 – Trilateral unloading and Hi-Tip unloading (depending on the configuration chosen) are controlled by individual hydraulic joysticks 6 – LED light system switch 7 – Second speed selector 8 – Hydraulic power take-oil 9 – Engine accelerator lever 10 – Emergency switch for immediate machine stop 11 – Handle 12 – Tank The SENSORS warn the user in case of excessive inclination (over 30% / 17°) by means of an acoustic signal (over 30% / 17°) by means of an acoustic signal. In case of extreme of overturning, the machine will activate an additional continuous In the event of extreme tilting, the machine will activate an additional continuous acoustic alarm signal to attract people in the vicinity. Thanks to the INDUSTRY 4.0 KIT the alarm can be forwarded to the machine’s remote management app, to signal a request for intervention. With the EVO series, minidumper load capacity 1.000 Kg, we are introducing to the market machines with single control (joystick) and servo controls for all services, which will win over the most demanding professionals. They stand out for their advanced level of active safety. The “industry 4.0” digital control panel not only monitors the machine’s vital values, with motion and tilt sensors providing a high level of  safety, but also allows a whole range of values useful to the operator to be displayed on the screen during use.  The use of the machine outside the permitted values is indicated by an audible alarm, while an adverse event  such as accidental overturning is signalled by a prolonged alarm and sent to a digital platform, which alerts the  manager of the company or site of the incident. The range includes 3 versions: – Tipping dumper – High-tip  dumper – Rotating dumper body for side discharge The high dump system has been designed with “articulated quadrilateral” arms that allow the dumper to be climbed in a horizontal position without the front encumbrance  of pantograph mechanisms that reduce its versatility when unloading onto vehicles. Documentazione tecnica File Description File size Downloads Catalogo Pellicano 1000EVO IT_EN_2025 15 MB 142 Catalogo Pellicano 1000EVO FR_EN_2025 15 MB 98
