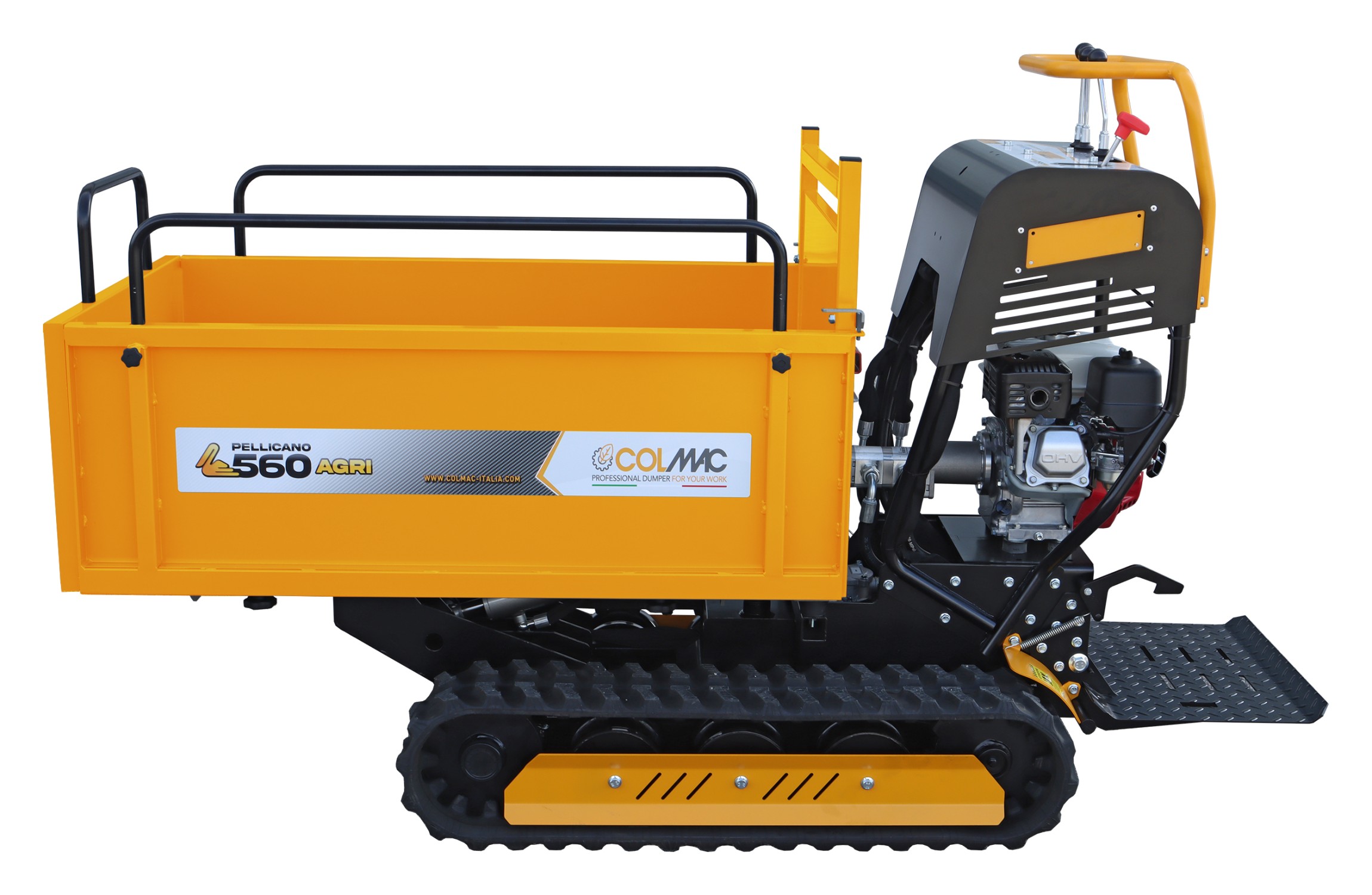

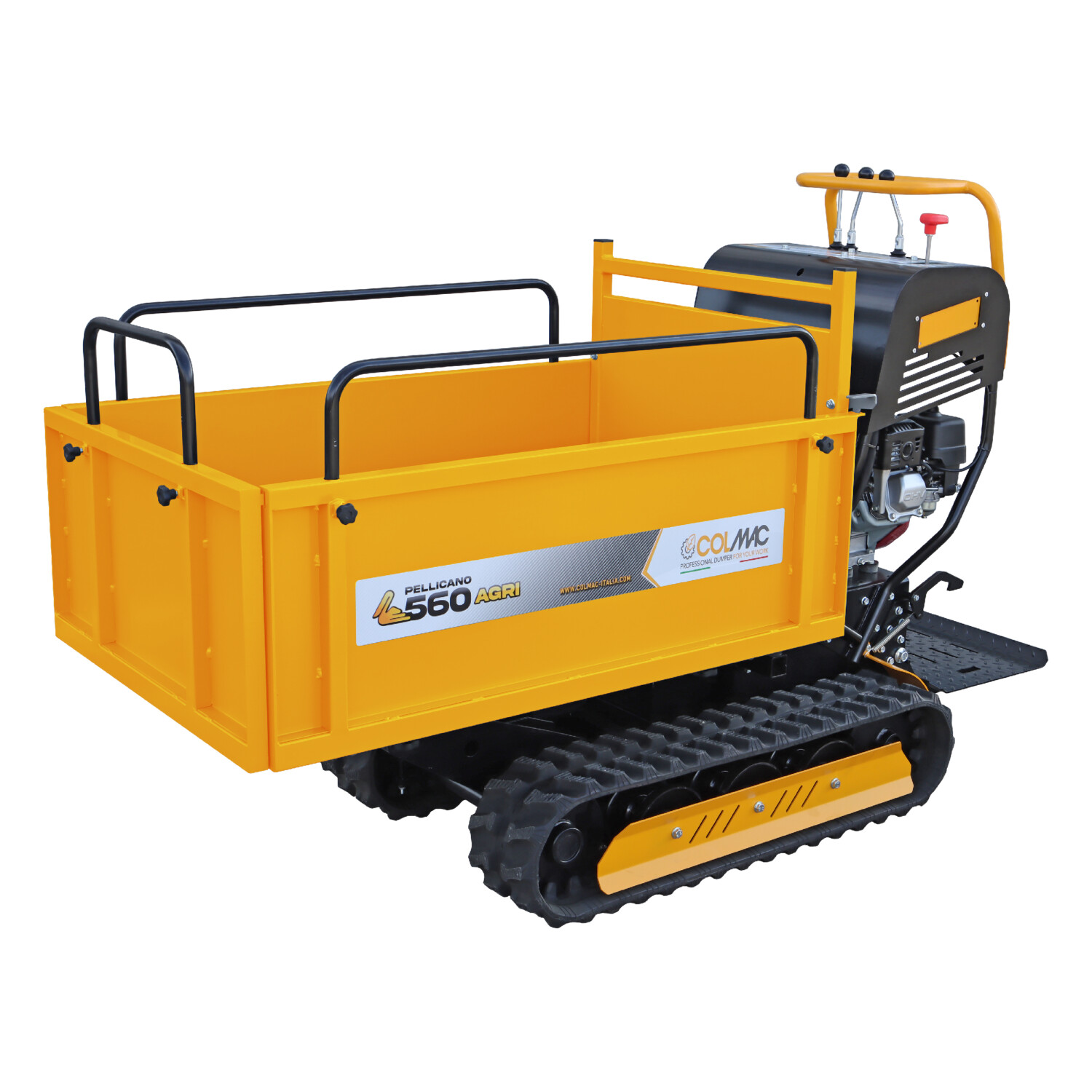

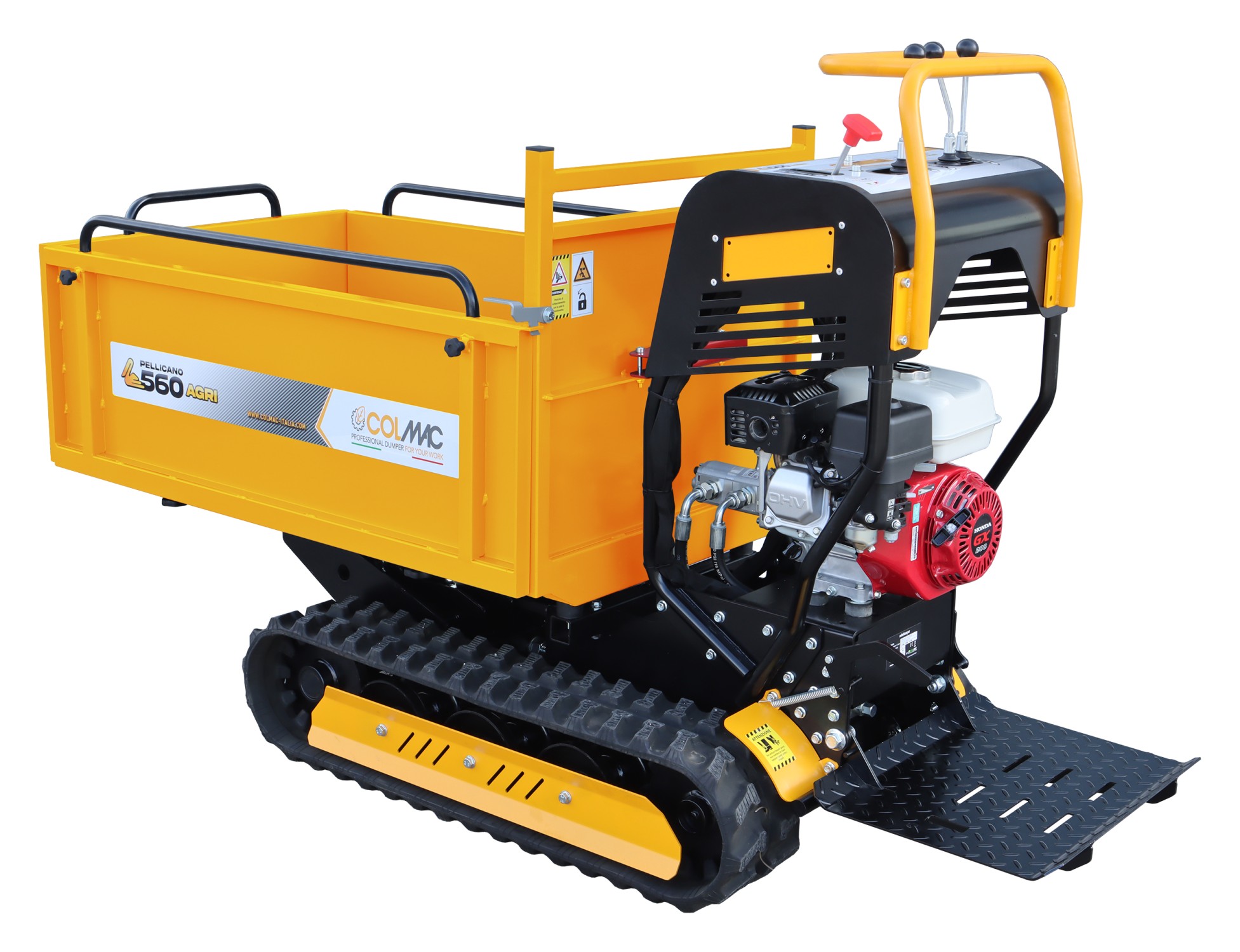

Mini Dumper Pellicano 560 Pro Agri – Openable Body

Width 72 cm Openable body Max payload 500 Kg Hydraulic tipping Max slope 30% Gasoline 1 speed Honda GX 200 DASHBOARD OF MINI DUMPER WITH OPENABLE BODY Starting Advancing Steering Tipping Hour meter The control panel, located in front of the operator, is intuitively presented. TRACKS – TRACK TENSIONERS The recovery springs mounted on the tensioning system prevent tearing or damaging the track and the transmission components. 3 support rollers, maximum slope of 30%. EXTERNAL PROTECTIONS A further protection is given by strong external barriers, these cover the rollers thus avoiding the intrusion of stones or inert foreign material. COMPONENTS and HYDRAULIC SYSTEM Pump • Cylinder • Pipes • Control valves • Hydraulic pump • 2 Type 1 gear pumps • Oil tank 14Lt • Security valve • Overcenter Security system OPERATOR PLATFORM Operator’s footboard standard and foldable limiting the encumbrance to a minimum. ELECTRIC STARTER KIT (OPTIONAL) Allows a start easy and fast simply turning the KEY. LED LIGHTS KIT(OPTIONAL) 3 high brightness led headlights. Technical Data Sheet Engine Honda GX200 4,3 kw – 5,8 Cv – 3600 rpm/min Loncin 208 Loncin KM 178 Yanmar L70 Engine type 4 Stroke – single cylinder Fuel tank capacity 3,1 Lt petrol Starting system Manual or Electric (optional) Transmission Hydraulic Advancement speed 0 km/h – 2,5 km/h Hydraulic motors 200 cc orbital 2 Hydraulic pumps Type 1 Max pressure 180 bar Working pressure 180 bar Flow rate pumps 9,3 Lt/min x2 (3000 rpm) Oil tank 14 Lt Safety system Overcenter Inclination Max 30% (17°) Load capacity 500 kg flat (350 kg inclined plane) Tipping system Hydraulic Total dimensions 150 x 124 x 83,3 cm Net weight 340 kg Track dimensions 180 mm width 60 mm pitch • 38 link Track tension adjustment Tension system with springs semi-automatic Track rollers 3 1 Support handle 2 Control panel 3 Engine 4 Operator platform 5 Hydraulic motors 6 Track guard 7 Track tensioner 8 Hydraulic oil tank 9 2 hydraulic pumps 10 Overcenter safety valves 11 Self-loading shovel The main features that distinguish it, besides the accurate aesthetic “design” and the sturdiness of the reinforced steel frame, are: Hydraulic orbital motors of reinforced type, with axial load of about 1000 Kg, reinforced bearings and oil seals, flange with 4 holes and 32mm diameter shaft, 200 cubic cm displacement. Dumper body and loading pallet reinforced for heavy duty work, equipped with double hydraulic cylinder. Double parallel distributor. Documentazione tecnica File Description File size Downloads Catalogo Pellicano 560 660PRO IT_EN 2025 13 MB 191 Catalogo Pellicano 560 660PRO FR_EN 2025 15 MB 190
