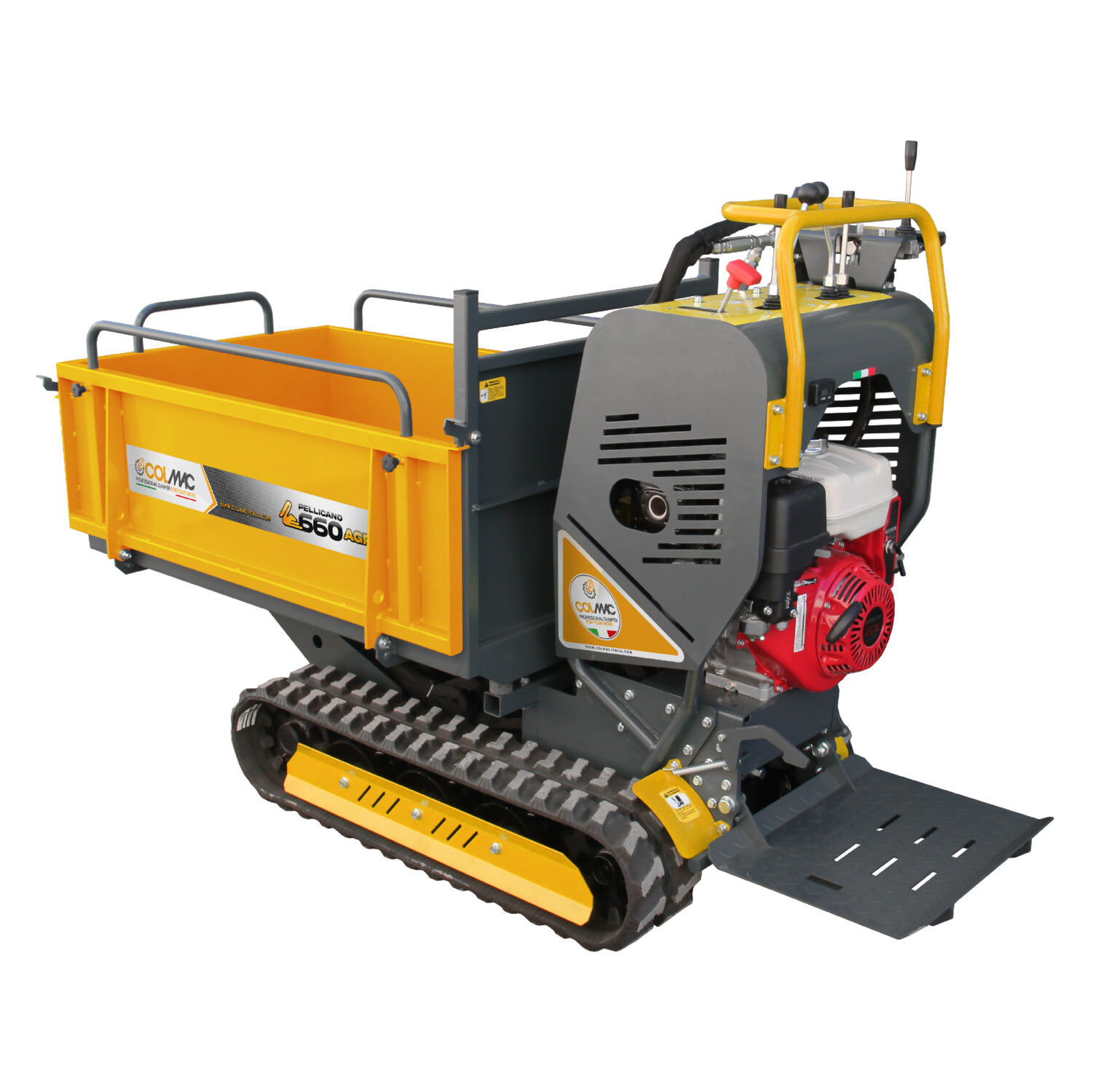

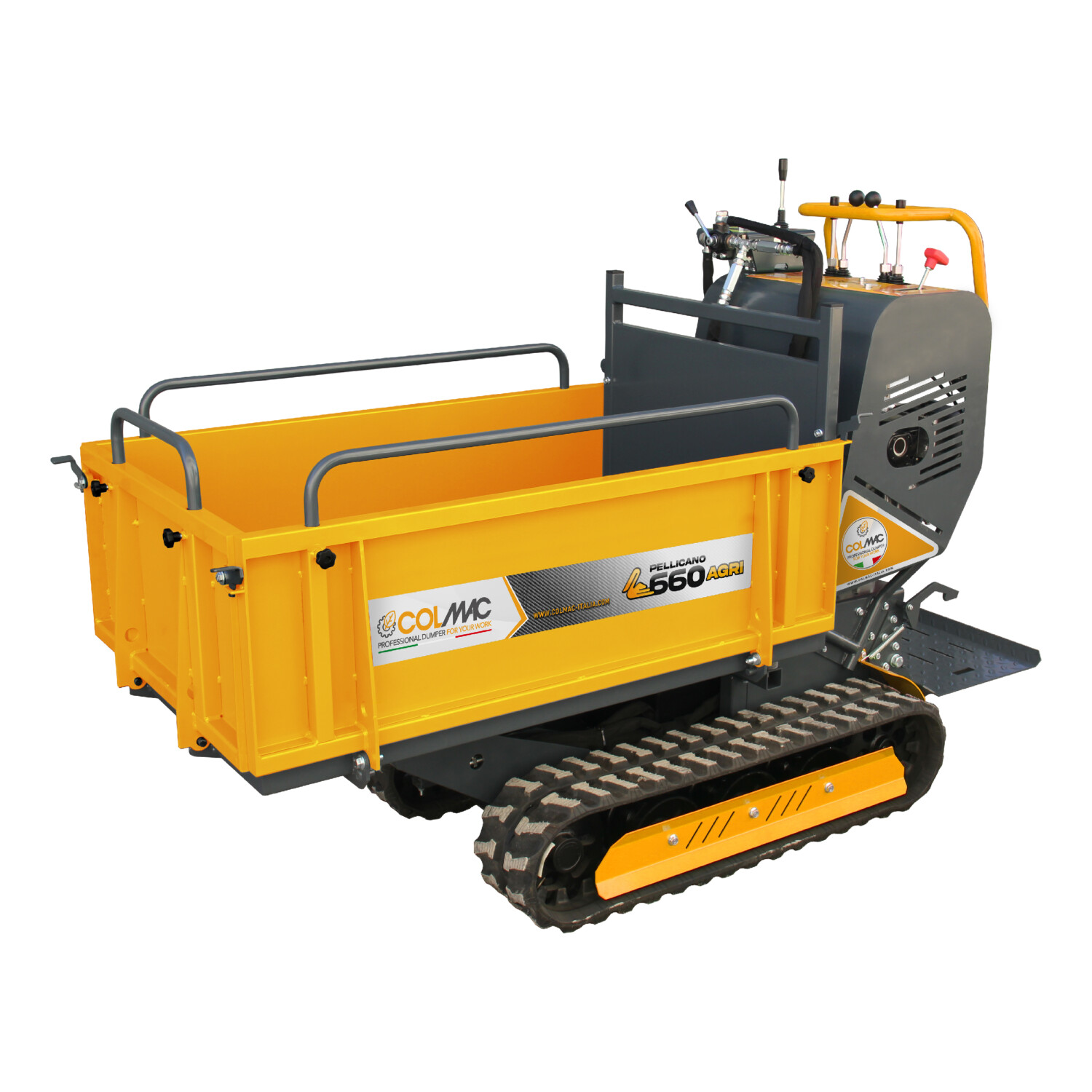

Mini Dumper Pellicano 660 Pro Agri

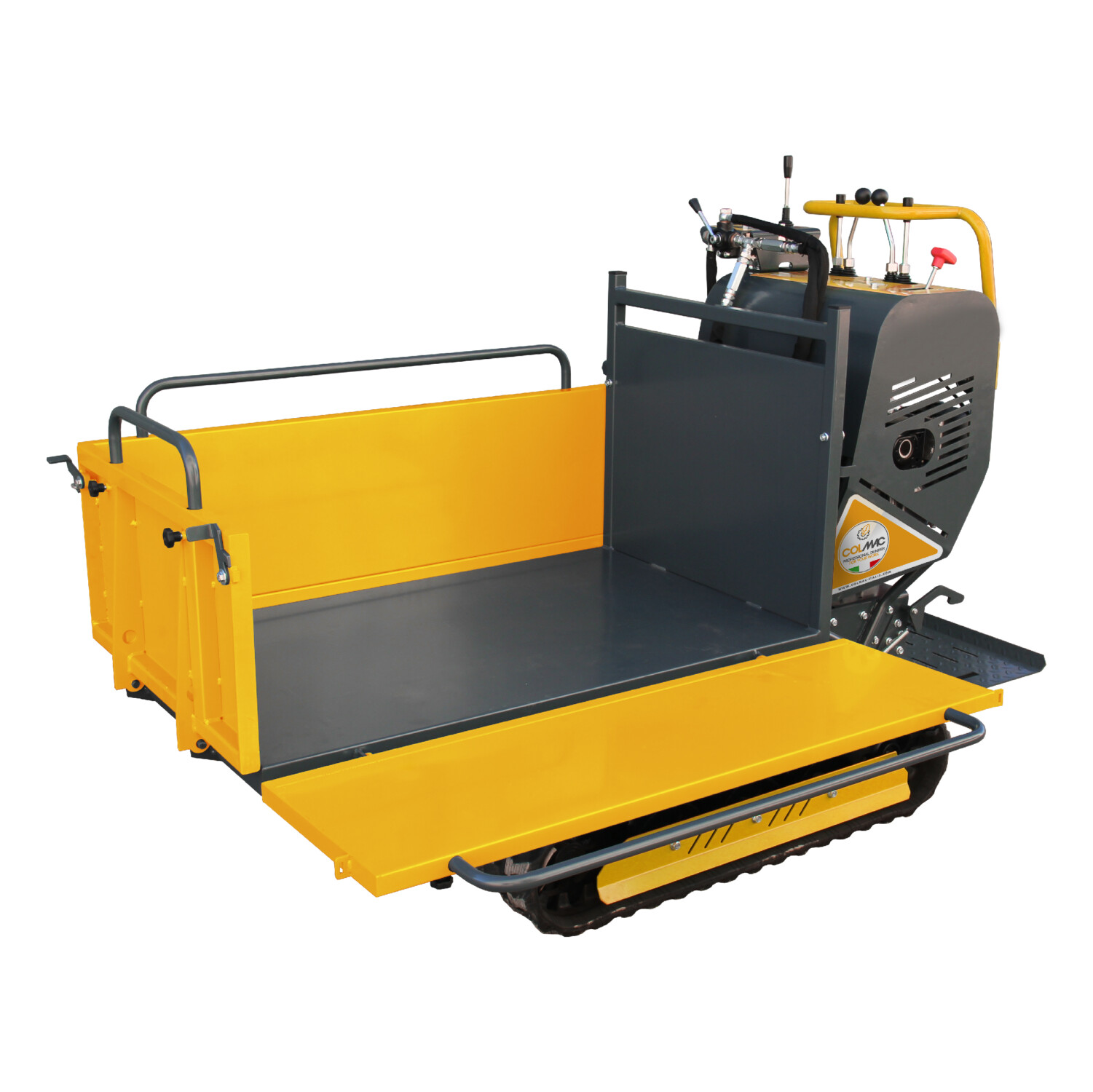

Width 72 cm Openable Body Max payload 600 Kg Hydraulic tipping Max slope 30% Gasoline 2 speed Honda GX 270 DASHBOARD Advance • Steering • Shovel movement • Body overturning • Concrete mixer drive (clockwise and anticlockwise) SPEED SELECTOR E CONCRETE MIXER ENABLING Double speed: 2 km/h – 3,6 km/h LEVER FOR CONCRETE MIXER MANAGEMENT The lever in question gives the possibility the user to manage the Mix20Fast concrete mixer. COMPONENTS AND HYDRAULIC SYSTEM Pump – Cylinder – Tubes – Control valves TRACKS – TRACK TENSIONERS The recovery springs mounted on the tensioning system prevent tearing or damaging the track and the transmission components. EXTERNAL PROTECTIONS A further protection is given by strong external barriers, these cover the rollers thus avoiding the intrusion of stones or inert foreign material. Technical Data Sheet Engine Honda GX270 6,3 kw – 8,4 Cv – 3600 rpm/min Engine type 4 Stroke – single cylinder Fuel tank capacity 5,3 Lt petrol Starting system Manual or Electric (optional) Transmission Hydraulic Advancement speed 2 Speed – 2 km/h – 3.6 km/h Hydraulic motors 250 cc orbital 1 Hydraulic pumps Type 2 3-way flow divider Max pressure 180 bar Working pressure 150 bar Flow rate pumps 31,5 Lt/min a 3000 rpm Oil tank 14 Lt Safety system Overcenter Inclination Max 30% (17°) Load capacity 600 kg flat (350 kg inclined plane) Tipping system Hydraulic Total dimensions 150 x 124 x 83,3 cm Net weight 425 Kg Track dimensions 180 mm width 60 mm pitch • 38 link Track tension adjustment Tension system with springs semi-automatic Track rollers 3 1 Double speed selector 2 Mix25Fast management lever 3 Control panel 4 Support handle 5 Honda GX270 engine 6 Operator platform 7 Track guard 8 Hydraulic Pump 9 Track tensioner 10 Plug and Play system 11 250 Lt concrete mixer 12 Self-loading shovel Honda GX270 6.3 Kw is the engine chosen for this minidumper. Mix25Fast is the perfect accessory for mixing and transporting building mixes (max 250 Lt). The mixing operation can continue even while moving, reducing manpower and time. Dumper is the ideal equipment for transporting inert material (m3 0.30), but also liquids (0.21m3) on the flat. Agricultural/Forestry is the body with sides that can be opened at 90°, 35cm high, in addition to the practical tubular over sides, adjustable in height for the transport of bulky loads. Documentazione tecnica File Description File size Downloads Catalogo Pellicano 560 660PRO IT_EN 2025 13 MB 191 Catalogo Pellicano 560 660PRO FR_EN 2025 15 MB 190
