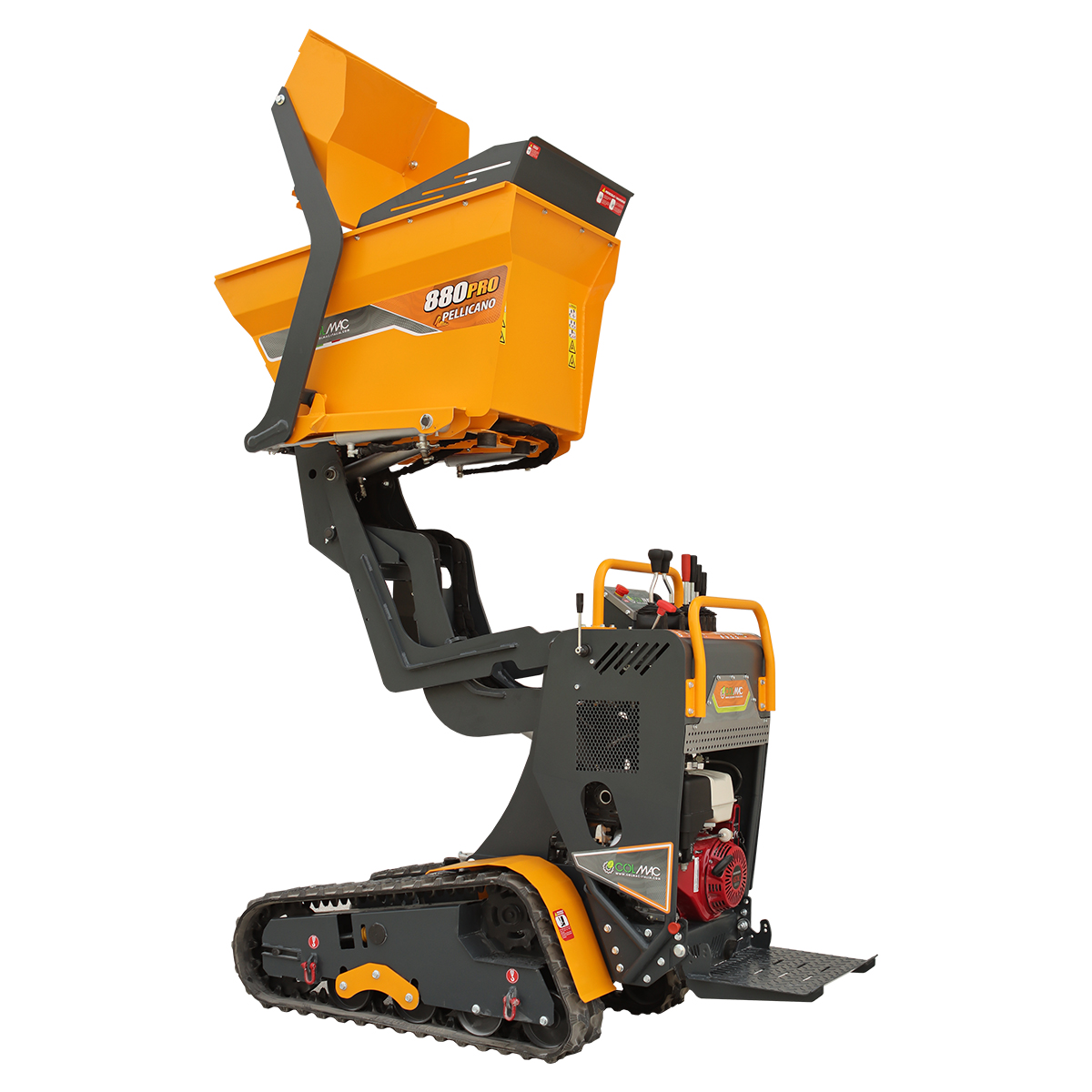

Mini Dumper Pellicano 880 Pro SA

Width 78 cm Dumper hi tip Max payload 700 Kg Hydraulic tipping Max slope 30% 10lt Gasoline 2 speed Honda GX 390 Optional Kit 2 OVERCENTER VALVES OF MINI DUMPER HONDA For added safety, the machine is equipped with overcenter valves, which eliminate the possibility of increasing the speed when descending (even with heavy loads) and making it stationary when standing on slopes. HYDRAULIC SYSTEM The machine, mini dumper honda, is equipped with 3 gear pumps, which guarantee the movement and use of all the services with which it is equipped. TRACKS – IDLERS 4 support rollers on each side ROLLER BALANCED SYSTEM Four rollers enabling the machine to overcome obstacles UNDERCARRIAGE Stable on all types of terrain LED HEADLIGHTS KIT standard with version fitted with electric starter OPERATOR PLATFORM A large, comfortable, robust and non-slip operator’s platform is fitted as standard. With vibration damping system. Also foldable for space-saving storage. ENGINE HONDA The mini dumper high discharge is equipped as standard with the electric starter system. Technical Data Sheet Engine Honda GX390 9,5 kw – 13 Cv – 3600 rpm/min Engine type 4 Stroke – single cylinder Fuel tank capacity 10 Lt petrol Starting system Electric Transmission Hydrostatic Advancement speed 2 speed – 2,5 km/h – 4,2 km/h Hydraulic motors 315 cc orbital 1 Hydraulic pump Trile gear Flow rate 24 12 12 Lt/min a 3000 rpm Max pressure 180 bar Working pressure 150 bar Oil tank 16 Lt Safety system Over center Inclination Max 30% (17°) When this threshold is exceeded, an acoustic signal is activated Load capacity 700 kg flat (550 kg inclined plane) Tipping system Hydraulic Body volume 0,32 m³ Total dimensions 160 x 140 x 80 cm Net weight 640 kg *70 kg – Kit Loading Shovel Guidance system Standard levers Track dimensions 200 mm width 72 mm pitch • 37 link Track tension adjustment Tension system with springs semi-automatic Track rollers 4 (including 2 tilting) 1 Dumper 2 Self-loading shovel (optional) 3 Hi Tip System 4 Operator platform, foldable 5 Side protections 6 Roller balanced system 7 Track tensioning springs 8 Lifting hooks 9 Mudguard The use of the machine outside  the permitted values is indicated by an audible alarm, while an adverse event such as accidental overturning is signalled by a prolonged alarm and sent to a digital platform, which alerts the company or site manager of the incident. The range includes 3 versions of this mini dumper Pellicano 880: • Tipping dumper • Dumper with high discharge • Concrete mixer 250 and 350 Lt • Agricultural body The mini dumper high discharge system has been designed with “articulated quadrilateral” arms that allow the dumper to be raised in a horizontal position without the need for pantograph mechanisms at the front, which reduce its versatility when unloading onto vehicles. Documentazione tecnica File Description File size Downloads Catalogo Pellicano 880PRO IT_EN_2025 10 MB 191 Catalogo Pellicano 880PRO FR_EN_2025 10 MB 129
